STATOR WELDING-CLEATING  MACHINES

 The range of machines for welding-cleating depends essentially upon four basic types:

• Type WRH 150 RT semi-automatic welding machine
• Type WRH 250  semi-automatic welding machine
• Type ARH 150 semi-automatic cleating machine
• Type ARH 500 semi-automatic cleating machine
• Type ARH 800 semi-automatic cleating machine

Type WRH 150 RT semi-automatic welding machine

The essential characteristics of this machine are its excellent reliability, which derives from its relatively simple design, combined with the use of the highest-quality components and materials in its construction.

Technical characteristics:

– Maximum diameter of stator stack                         180         mm
– Maximum height of stator stack                              100         mm
– Number of welding heads                                        4
– Maximum applied pressure                                     50            KN
– Number of welding slots                                          4
– Number of mandrel                                                  3

Type ARH 150 RT semi-automatic cleating machine

The essential characteristics of this machine are its excellent reliability, which derives from its relatively simple design, combined with the use of the highest-quality components and materials in its construction.

Technical characteristics:

– Maximum diameter of stator stack                          200         mm
– Maximum height of stator stack                              200         mm
– Number of cleating heads                                        2
– Maximum applied pressure                                     50            KN
– Number of cleating slots                                          4-6-8
– Number of mandrel                                                  3

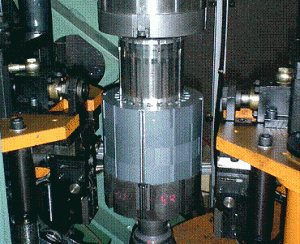

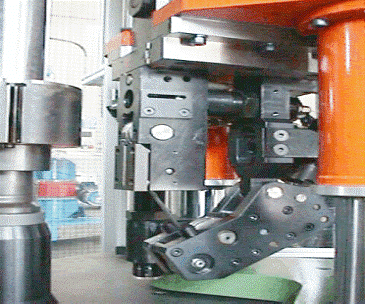

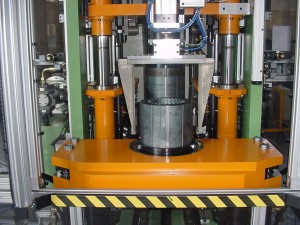

Cleating head

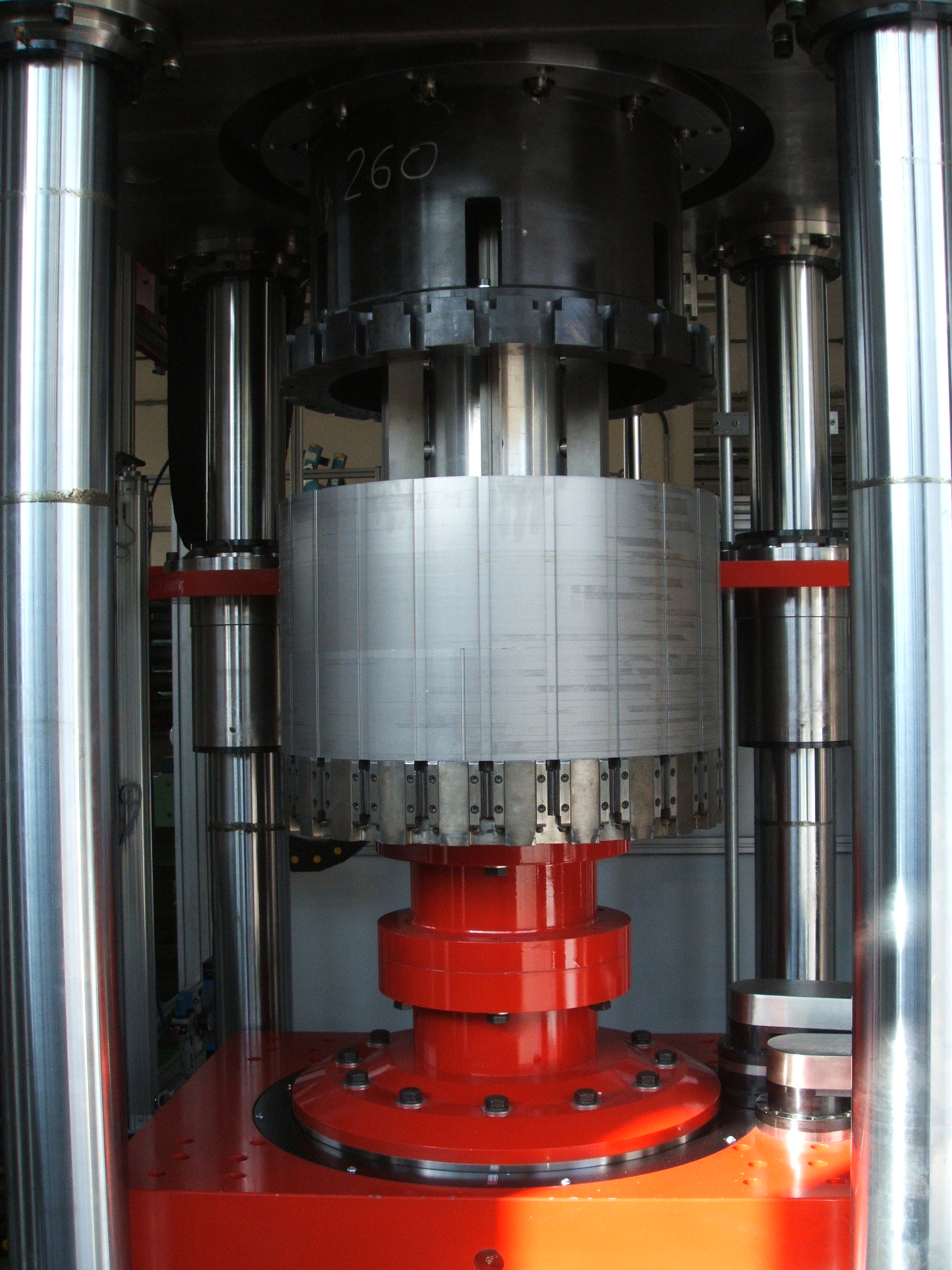

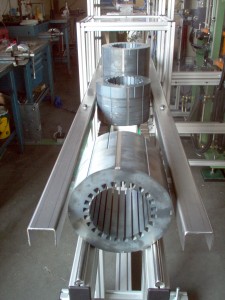

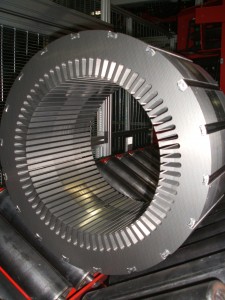

Type ARH 500 semi-automatic cleating machine

This unit distinguishes itself for its structural solidity, enabling the cleating of large, heavy stators. The machine is fitted with a lower slide that enables the mandrel to emerge from the cleating unit in order to facilitate the loading of the lamination, and a robust oleodynamic manipulator for the final unloading of the stator cases.

Technical characteristics:
– Maximum diameter of stator stack                         500         mm
– Maximum height of stator stack                              500         mm
– Number of cleat heads                                              2
– Maximum applied pressure                                     400         KN
– Number of cleating slots                                          24 / 12 / 8 / 4

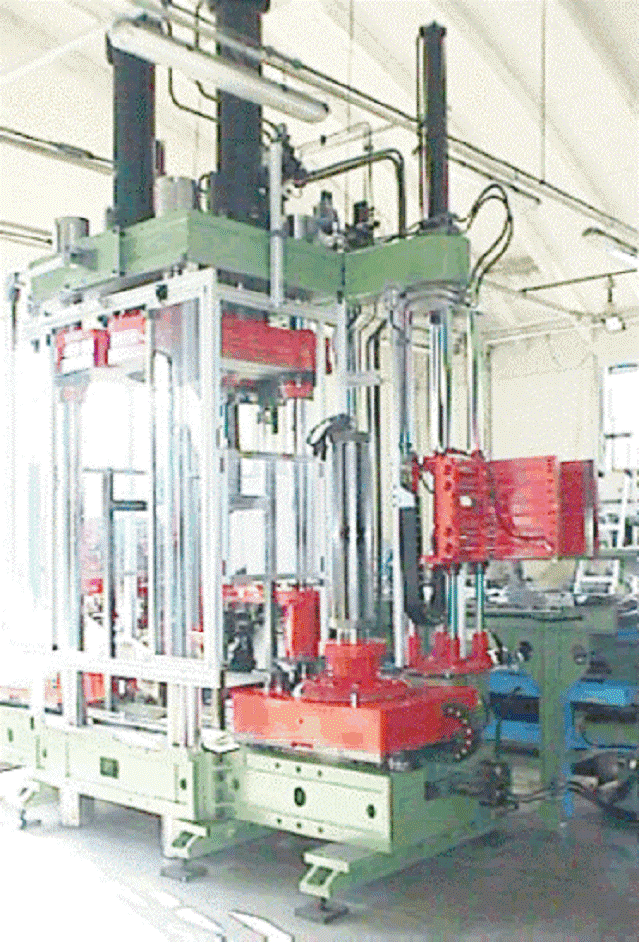

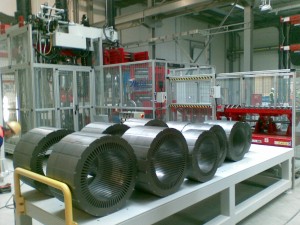

Type ARH 800 semi-automatic cleating machine

The latest arrival in the range and the result of years of experience, this machine sits at the top of the range as a result of its technological features. Thanks to its robust construction and the adoption of new mechanical solutions, it enables the cleating of extra-large stator cases. Equipped with two slides opposite each other, it enables the loading of laminations outside the machine at the same time as cleating operations are under way, resulting in less wasted time and a notable improvement in overall productivity.

Technical characteristics:

– Maximum diameter of stator stack                          800         mm
– Maximum height of stator stack                              800         mm
– Number of cleat heads                                             1
– Maximum applied pressure                                     2.000      KN
– Number of cleating slots                                         as requested by the customer, allowing for size, with freely  programmable radial subdivision

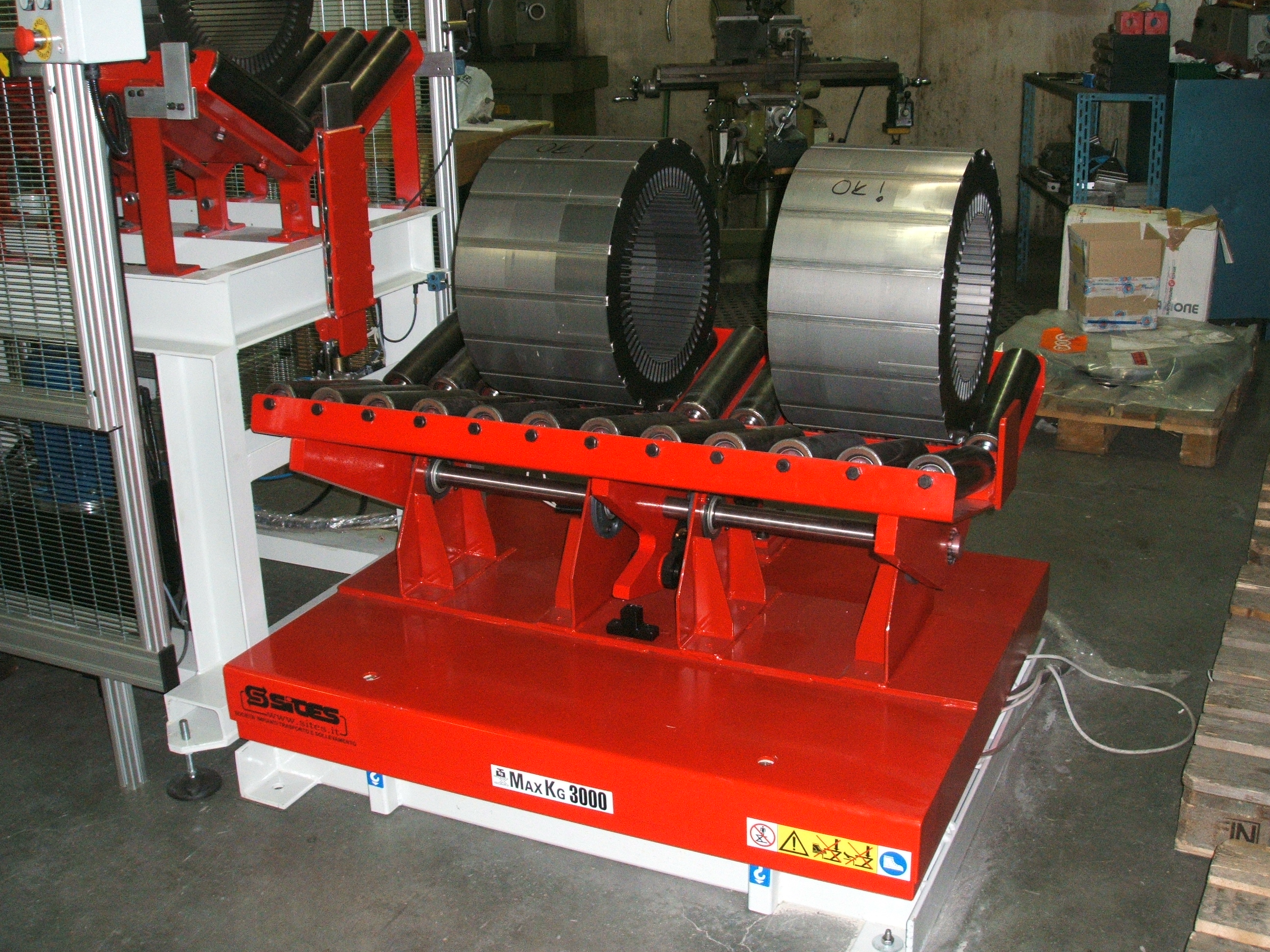

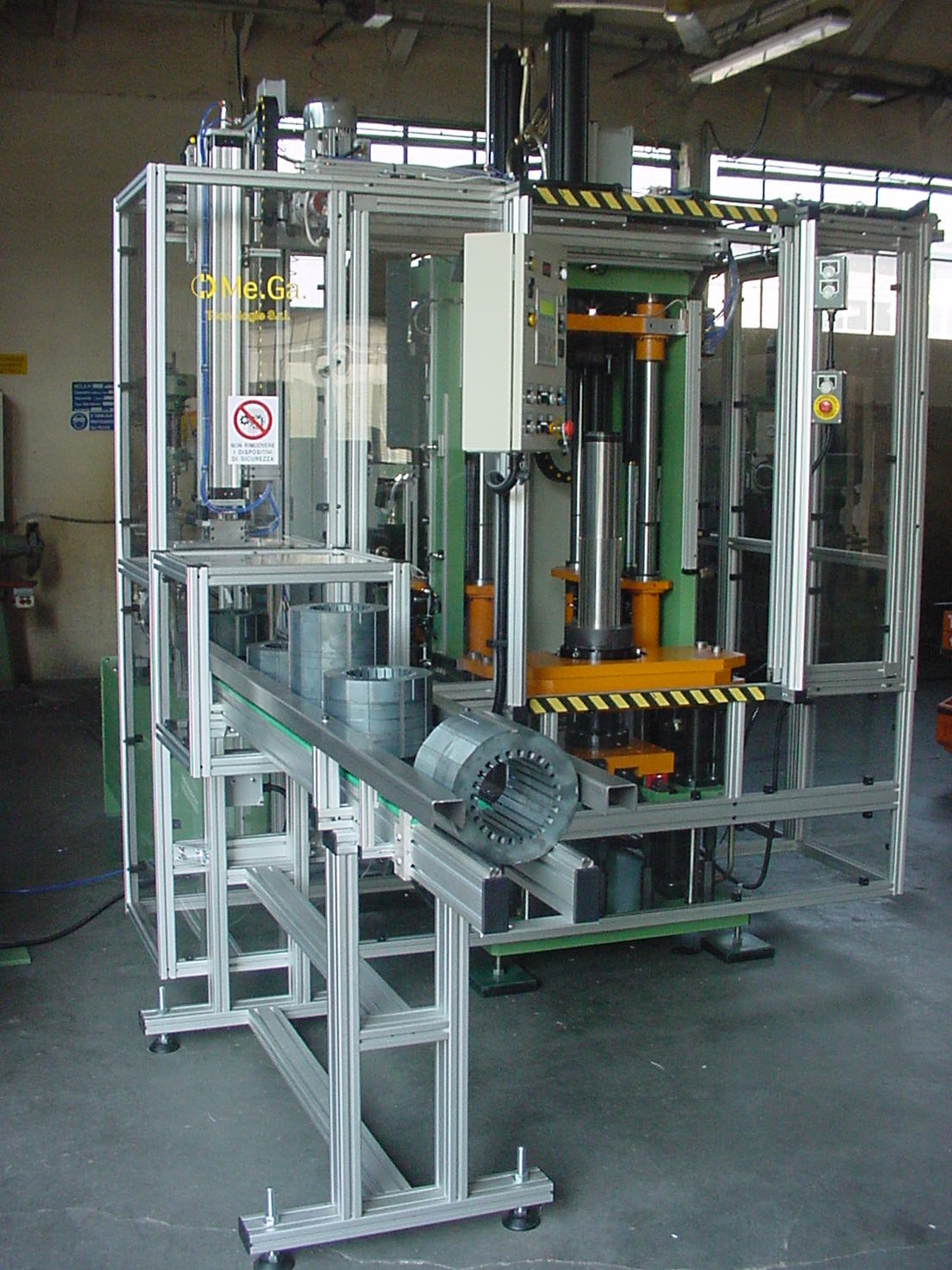

Cleating machine ARH 800
